PARKING BRAKE REMINDER WARNING ALARM CONSTRUCTION/OPERATION
id092200103000

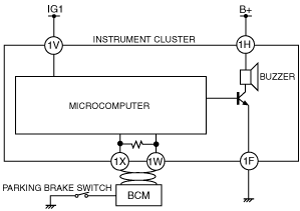

System Wiring Diagram
Operation
• The buzzer in the instrument cluster sounds continuously when all the following two conditions are met:
-
― Parking brake has not been released (parking brake switch is on).
― The vehicle speed is 5 km/h {3.1 mph} or more.
