INSTRUMENT CLUSTER INPUT/OUTPUT CHECK MODE

id092200801700

Note

•  In this mode, it is possible to verify the items in the following chart.

Check Code Table

Check code	Check item	Related items
08	TNS relay	•  Lights-on reminder warning alarm •  Each illumination light
12	Speedometer	Speedometer
13	Tachometer	Tachometer
14	Buzzer	Buzzer
16	Fuel-level warning light	Fuel-level warning light
22	Fuel gauge sender unit	Fuel gauge
23	Fuel gauge	Fuel gauge
25	Water temperature gauge	Water temperature gauge
26	•  Odometer/tripmeter (LCD) •  Warning and indicator light	•  Odometer/tripmeter (LCD) •  Warning and indicator light
51*	—	—
55	Panel light control switch (dimmer switch)	Panel light control switch (dimmer switch)
57	Panel light control	Illumination light bulb

Note

•  Check codes which are not listed may be indicated, but they cannot be inspected.

•  The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)

•  If a speed signal is input to the instrument cluster (the wheels are rotated), the input/output check mode will be cancelled.

•  The check codes can be fast-forwarded by pushing and holding the odometer/tripmeter switch for 1 s or more.

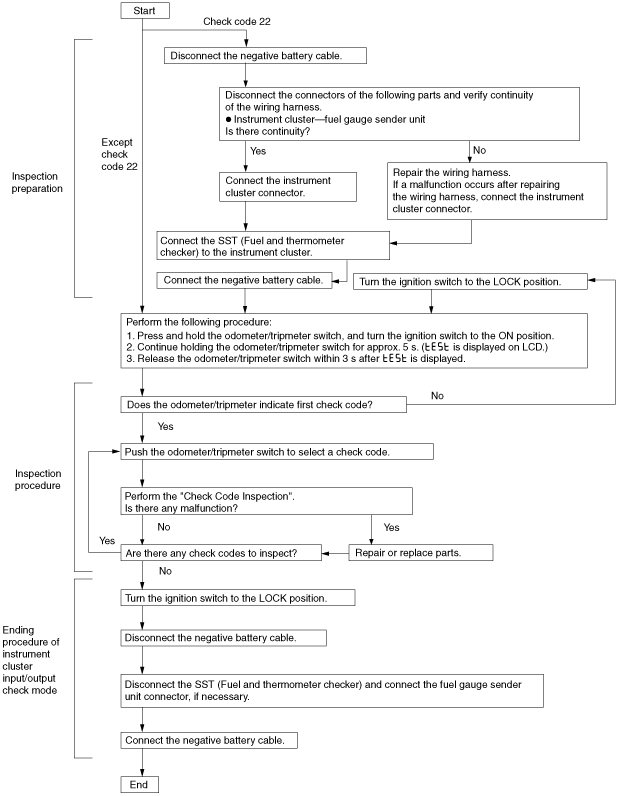

acxuuw00002169

Checking Order

Note

•  When inspecting more than two check codes, begin with the code with the highest ranking.

Priority order of inspection	Check code
1	22
2	08, 12, 13, 14, 16, 23, 25, 26, 55, 57

Check Code Inspection

Check code 08

Check code 08		TNS relay ON/OFF signal
STEP	INSPECTION CONDITION		DISPLAY	ACTION
1	Turn the headlight switch to the TNS position. (TNS relay ON)			Go to the next step.
				Verify that the voltage of instrument cluster terminal 1K is B+. •  If the voltage is as specified, replace the instrument cluster. •  If the voltage is not as specified, inspect the following parts: ―  TNS relay ―  Wiring harness (Battery—TNS relay—instrument cluster)
2	Turn the headlight switch off. (TNS relay OFF)			Verify that the voltage of the instrument cluster terminal 1K is 1.0 V or less. •   If the voltage is as specified, replace the instrument cluster. •  If the voltage is not as specified, inspect the following parts: ―  TNS relay ―  Wiring harness (TNS relay—instrument cluster)
				Input signal to the instrument cluster is normal.

Check code 12

Check code 12		Speedometer display signal
INSPECTION CONDITION			DISPLAY	ACTION
After selecting check code 12, wait for approx. 2 s.				The speedometer needle moves full scale then returns to approx. 60 km/h.	The speedometer is normal.
				Except above	Replace the instrument cluster.
				—

Check code 13

Check code 13	Tachometer operation signal
INSPECTION CONDITION		DISPLAY	ACTION
After selecting check code 13, wait for approx. 2 s.			The tachometer needle moves full scale then returns to approx. 3,000 rpm.	The tachometer is normal.
			Except above	Replace the instrument cluster.
			—

Check code 14

Check code 14	Buzzer operation signal
INSPECTION CONDITION		DISPLAY	ACTION
After selecting check code 14, wait for approx. 2 s.			The buzzer sounds.	The buzzer is normal.
			The buzzer does not sound.	Replace the instrument cluster.

Check code 16

Check code 16	Fuel-level warning light flashing signal
INSPECTION CONDITION		DISPLAY	ACTION
After selecting check code 16, wait for approx. 2 s.			Fuel-level warning light flashes three times.	The fuel-level warning light is normal.
			Except above	Replace the instrument cluster.

Check code 22

Check code 22		Fuel level signal
STEP	INSPECTION CONDITION		DISPLAY	ACTION
1	Select check code 22 with the fuel gauge sender unit connector disconnected.			Go to the next step.
			Except above	Go to the Step 6.
2	Connect terminals 1D and 1R of the instrument cluster.			Go to the next step.
			Except above	Go to the Step 6.
3	Using the SST (Fuel and thermometer checker) or resistor, input 20 ohms between instrument cluster terminals 1D and 1R.			Go to the next step.
			Except above	Go to the Step 6.
4	Using the SST (Fuel and thermometer checker) or resistor, input 60 ohms between instrument cluster terminals 1D and 1R.			Go to the next step.
			Except above	Go to the Step 6.
5	Using the SST (Fuel and thermometer checker) or resistor, input 100 ohms between instrument cluster terminals 1D and 1R.			Inspect the fuel gauge sender unit.
			Except above	Go to the next step.
6	Inspect the wiring harness and connector between instrument cluster and fuel gauge sender unit. •  If there is any malfunction, repair or replace the wiring harness or connector. •  If there is no malfunction, replace the instrument cluster.

Check code 23

Check code 23	Fuel gauge operation signal
INSPECTION CONDITION		DISPLAY	ACTION
After selecting check code 23, wait for approx. 2 s.			The fuel gauge indicates status in the following order approx. every 2 s. •  F → 1/2 → E → F (fixed)	The fuel gauge is normal.
			Except above	Replace the instrument cluster.
			Replace the instrument cluster.

Check code 25

Check code 25	Water temperature gauge operation signal
INSPECTION CONDITION		DISPLAY	ACTION
After selecting check code 25, wait for approx. 2 s.			The water temperature gauge indicates status in the following order approx. every 2 s. •  H → Center → C → H (fixed)	The water temperature gauge is normal.
			Except above	Replace the instrument cluster.
			Replace the instrument cluster.

Check code 26

Check code 26	Odometer/tripmeter display signal
INSPECTION CONDITION		DISPLAY	ACTION
Select check code 26.			•  Display is normal. •  Warning and indicator light illuminated. ―  Generator warning light ―  DSC indicator light ―  ABS warning light ―  Brake system warning light ―  Cruise set indicator light*1 ―  Cruise main indicator light*1 ―  TCS OFF light ―  Selector indicator light ―  Door ajar warning light ―  Seat belt warning light ―  Air bag system warning light ―  Turn indicator light ―  Oil pressure warning light ―  MIL ―  Keyless indicator light*2 ―  Keyless warning light*2 ―  Security light ―  Washer fluid-level warning light ―  ETC warning light ―  4WD warning light ―  AT warning light	•  The odometer/tripmeter is normal. •  Warning and indicator is normal.
			Except above	Replace the instrument cluster.

Check code 55

Check code 55		Dimmer switch ON/OFF signal
STEP	INSPECTION CONDITION		DISPLAY	ACTION
1	After selecting the check code 55, press and hold the dimmer switch. (Dimmer switch ON)			Go to the next step.
				Replace the instrument cluster.
2	Release the dimmer switch. (Dimmer switch OFF)			Replace the instrument cluster.
				Input signal to the instrument cluster is normal.

Check code 57

Check code 57	Panel light control signal
INSPECTION CONDITION		DISPLAY	ACTION
Turn the headlight switch to the TNS position. After selecting check code 57, wait for approx. 2 s.			Illumination light (hazard warning switch, center panel unit, etc.) flashes three times.	The panel light control signal is normal.
			Except above	Verify that the voltage of instrument cluster terminal 1I is B+. •  If the voltage is as specified, replace the instrument cluster. •  If the voltage is not as specified, inspect the following parts: ―  Illumination light (hazard warning switch, center panel unit, etc.) ―  Wiring harness (Instrument cluster—illumination lights—TNS relay)
