CONTROLLER AREA NETWORK (CAN) SYSTEM WIRING DIAGRAM

id094000103400

HS-CAN

L.H.D.

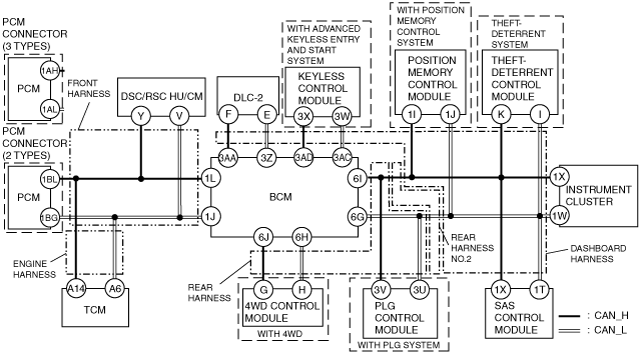

ac9wzn00000405

R.H.D.

PCM connector (2 types)

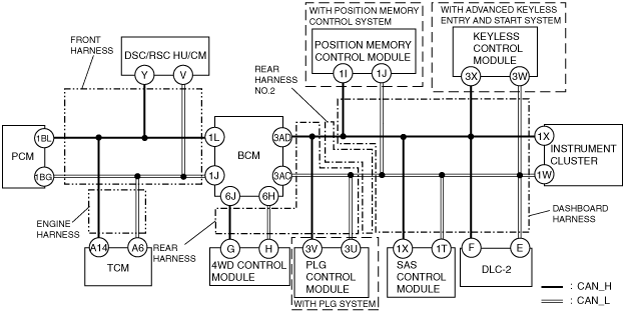

ac9wzn00000388

PCM connector (3 types)

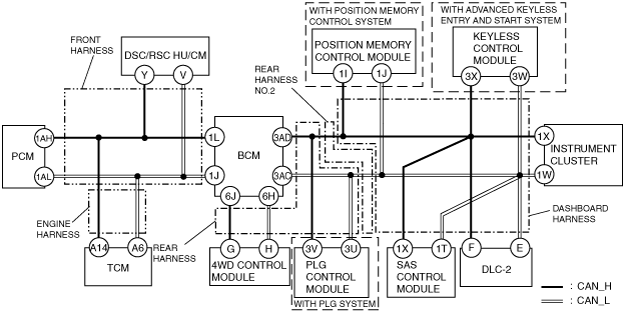

ac9wzn00000616

MS-CAN

L.H.D.

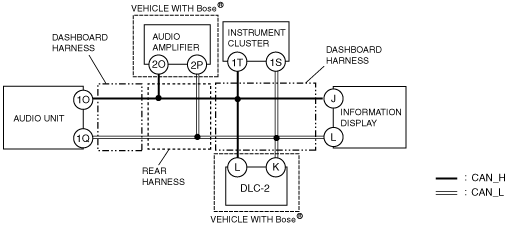

ac9wzn00000406

R.H.D.

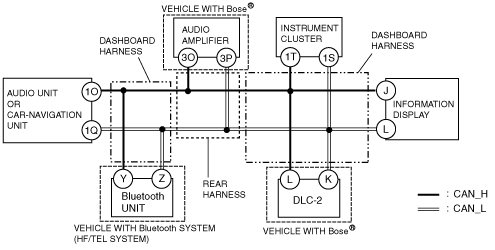

ac9wzn00000401
