CROSSMEMBER NO.8 REMOVAL [PANEL REPLACEMENT]

id098008618500

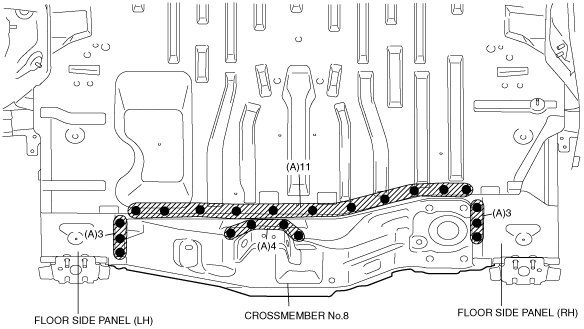

1.  Drill the 21 locations indicated by (A).

Caution

•  It is noted to damage floor side panel when crossmember no.8 is detached and not to transform it.

2.  Remove the crossmember no.8.

ac9uub00000070
