APRON REINFORCEMENT (LOWER) REMOVAL [PANEL REPLACEMENT]


id098008741300

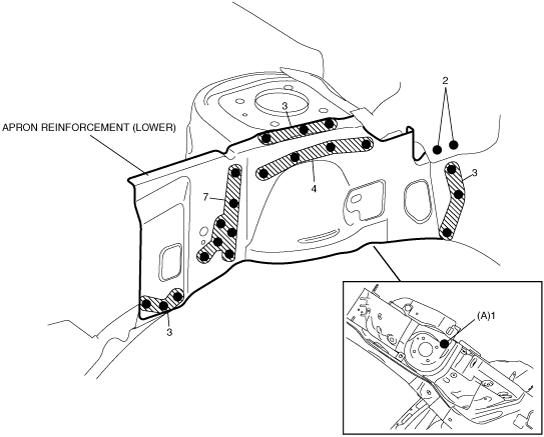

1.  Drill the 1 location indicated by (A) from the bottom, as they cannot be seen from the outer side.

2.  Remove the apron reinforcement (lower).

ac9uub00000030
