REAR PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008747200

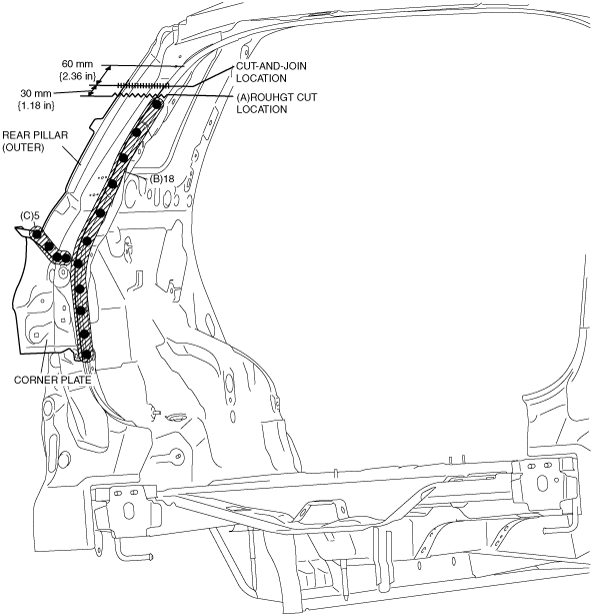

1.  Rough cut area (A), drill the 18 locations indicated by (B).

Note

•  When removing the rear pillar (outer) and the corner plate separately, drill the 5 locations indicated by (C).

Caution

•  Avoid cutting with a blow torch or similar tools as the insulator (shaded area) is flammable.
