SHROUD UPPER PANEL REMOVAL [PANEL REPLACEMENT]

id098008800400

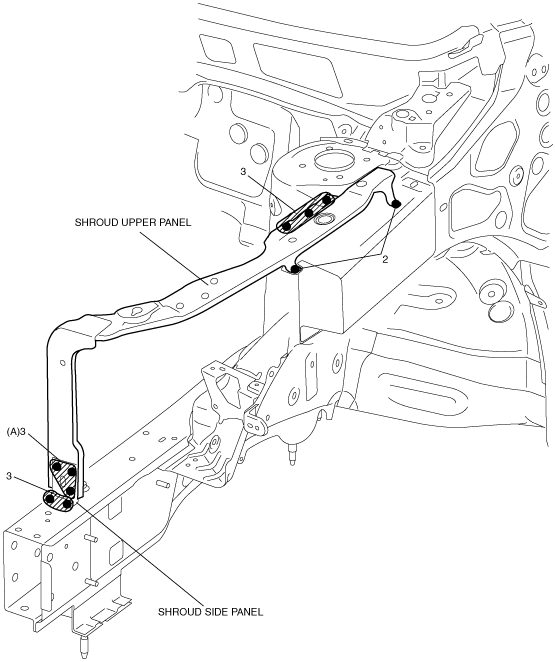

1.  Remove the shroud upper panel.

Note

•  When removing the shroud upper panel and the shroud side panel separately, drill the 3 locations indicated by (A).

ac9uub00000081
