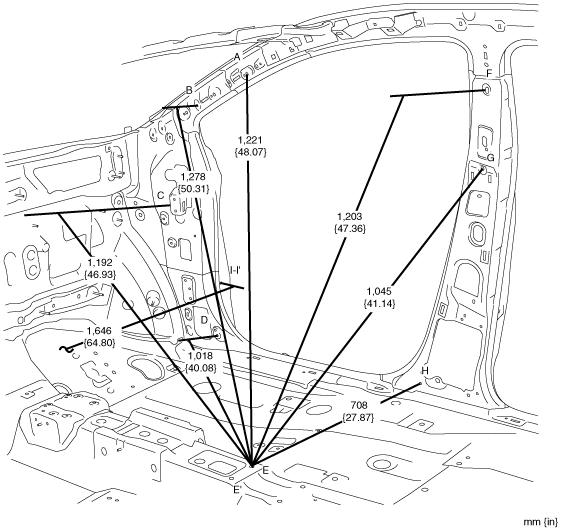

ROOM STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010743300

ac9uub00000012

ac9uub00000013

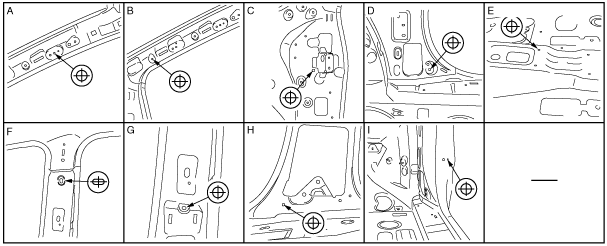

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Curtain air bag installation hole

φ7 {0.28}

B

Front pillar (inner) datum hole

φ7 {0.28}

C

Hinge pillar (inner) datum hole

φ10 {0.39}

D

Front side trim installation hole

φ8.6 {0.34}

E

Heater bracket installation hole

φ11 {0.43}

F

Center pillar (inner) datum slot

12 x 18

{0.47 x 0.71}

G

B-pillar upper trim installation hole

φ10.2{0.40}

H

Center pillar (inner) datum hole

φ7 {0.28}

I

Checker bracket installation hole

φ10 {0.39}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Curtain air bag installation hole	φ7 {0.28}
B	Front pillar (inner) datum hole	φ7 {0.28}
C	Hinge pillar (inner) datum hole	φ10 {0.39}
D	Front side trim installation hole	φ8.6 {0.34}
E	Heater bracket installation hole	φ11 {0.43}
F	Center pillar (inner) datum slot	12 x 18 {0.47 x 0.71}
G	B-pillar upper trim installation hole	φ10.2{0.40}
H	Center pillar (inner) datum hole	φ7 {0.28}
I	Checker bracket installation hole	φ10 {0.39}
