CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

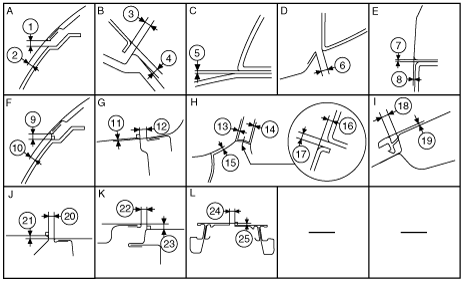

FRONT VIEW

ac9wzb00000002

ac9uub00000097

No.

Measurement part

Standard values (mm) {in}

Maximum values (mm) {in}

Minimum values (mm) {in}

Side by side difference (mm) {in}

A

1

4.50 {0.18}

6.00 {0.24}

3.00 {0.12}

2.00 {0.08}

2

2.59 {0.10}

4.09 {0.16}

1.09 {0.04}

-

B

3

1.20 {0.05}

2.60 {0.10}

-0.20 {0.01}

-

4

0.58 {0.02}

1.98 {0.08}

-0.82 {-0.03}

-

C

5

1.20 {0.05}

2.40 {0.09}

0.00 {0.00}

2.00 {0.08}

D

6

4.00 {0.16}

5.50 {0.22}

2.50 {0.10}

-

E

7

0.00 {0.00}

1.00 {0.04}

0

-

8

0.50 {0.02}

1.20 {0.05}

-0.20 {0.01}

-

F

9

4.50 {0.18}

1.50 {0.06}

3.00 {0.12}

-

10

2.02 {0.08}

3.52 {0.14}

0.52 {0.02}

-

G

11

4.30 {0.17}

5.50 {0.22}

3.1 {0.12}

-

12

4.00 {0.16}

5.20 {0.21}

2.80 {0.11}

1.00 {0.04}

H

13

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

14

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

15

0.00 {0.00}

1.50 {0.06}

-1.50 {-0.06}

-

16

0.00 {0.00}

1.50 {0.06}

-1.50 {-0.06}

-

17

2.00 {0.08}

3.20 {0.13}

0.80 {0.03}

1.20 {0.05}

I

18

4.40 {0.17}

6.10 {0.24}

2.70 {0.11}

2.30 {0.09}

19

0.60 {0.02}

2.60 {0.10}

-1.40 {-0.06}

-

J

20

3.50 {0.14}

4.50 {0.18}

2.50 {0.10}

1.00 {0.04}

21

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

K

22

3.50 {0.14}

4.50 {0.18}

2.50 {0.10}

1.00 {0.04}

23

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

L

24

4.50 {0.18}

6.00 {0.24}

3.00 {0.12}

1.50 {0.06}

25

0.00 {0.00}

1.50 {0.06}

-

-

No.	Measurement part	Standard values (mm) {in}	Maximum values (mm) {in}	Minimum values (mm) {in}	Side by side difference (mm) {in}
A	1	4.50 {0.18}	6.00 {0.24}	3.00 {0.12}	2.00 {0.08}
2	2.59 {0.10}	4.09 {0.16}	1.09 {0.04}	-
B	3	1.20 {0.05}	2.60 {0.10}	-0.20 {0.01}	-
4	0.58 {0.02}	1.98 {0.08}	-0.82 {-0.03}	-
C	5	1.20 {0.05}	2.40 {0.09}	0.00 {0.00}	2.00 {0.08}
D	6	4.00 {0.16}	5.50 {0.22}	2.50 {0.10}	-
E	7	0.00 {0.00}	1.00 {0.04}	0	-
8	0.50 {0.02}	1.20 {0.05}	-0.20 {0.01}	-
F	9	4.50 {0.18}	1.50 {0.06}	3.00 {0.12}	-
10	2.02 {0.08}	3.52 {0.14}	0.52 {0.02}	-
G	11	4.30 {0.17}	5.50 {0.22}	3.1 {0.12}	-
12	4.00 {0.16}	5.20 {0.21}	2.80 {0.11}	1.00 {0.04}
H	13	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
14	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
15	0.00 {0.00}	1.50 {0.06}	-1.50 {-0.06}	-
16	0.00 {0.00}	1.50 {0.06}	-1.50 {-0.06}	-
17	2.00 {0.08}	3.20 {0.13}	0.80 {0.03}	1.20 {0.05}
I	18	4.40 {0.17}	6.10 {0.24}	2.70 {0.11}	2.30 {0.09}
19	0.60 {0.02}	2.60 {0.10}	-1.40 {-0.06}	-
J	20	3.50 {0.14}	4.50 {0.18}	2.50 {0.10}	1.00 {0.04}
21	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
K	22	3.50 {0.14}	4.50 {0.18}	2.50 {0.10}	1.00 {0.04}
23	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
L	24	4.50 {0.18}	6.00 {0.24}	3.00 {0.12}	1.50 {0.06}
25	0.00 {0.00}	1.50 {0.06}	-	-

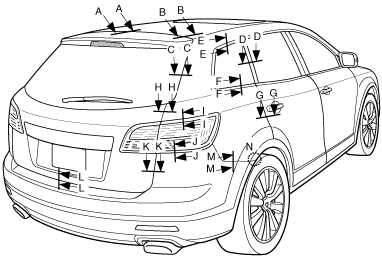

REAR VIEW

ac9uub00000098

acxjjb00000102

No.

Measurement part

Standard values (mm) {in}

Maximum values (mm) {in}

Minimum values (mm) {in}

Side by side difference (mm) {in}

A

1

6.00 {0.24}

7.00 {0.28}

5.00 {0.20}

1.20 {0.05}

2

-1.00 {-0.04}

0.00 {0.00}

-2.00 {0.08}

-

B

3

6.00 {0.24}

7.00 {0.28}

5.00 {0.20}

-

4

1.00 {0.04}

2.00 {0.08}

0.00 {0.00}

-

C

5

4.30 {0.17}

6.80 {0.27}

1.80 {0.07}

2.00 {0.08}

6

2.50 {0.10}

5.10 {0.20}

-0.10 {-0.004}

-

D

7

4.90 {0.19}

6.70 {0.26}

3.10 {0.12}

1.80 {0.07}

8

2.00 {0.08}

3.80 {0.15}

0.20 {0.01}

-

E

9

0.00 {0.00}

0.50 {0.02}

-

-

F

10

0.00 {0.00}

0.50 {0.02}

-

-

G

11

3.50 {0.14}

4.50 {0.18}

-

1.00 {0.04}

12

0.00 {0.00}

1.00 {0.04}

-1.00 {-0.04}

-

H

13

4.00 {0.16}

5.20 {0.21}

2.80 {0.11}

-

14

1.00 {0.039}

2.20 {0.09}

-0.20 {-0.01}

-

I

15

1.20 {0.058}

2.20 {0.09}

0.20 {0.01}

-

16

2.30 {0.09}

4.30 {0.17}

0.30 {0.01}

-

J

17

1.20 {0.05}

2.50 {0.10}

0.10 {0.004}

-

18

2.99 {0.12}

4.49 {0.18}

1.49 {0.06}

-

K

19

4.00 {0.16}

6.50 {0.26}

1.50 {0.06}

2.00 {0.08}

20

-1.50 {-0.06}

0.50 {0.02}

-3.50 {-0.14}

-

L

21

6.00 {0.24}

8.00 {0.32}

4.00 {0.16}

2.00 {0.08}

M

22

0.00 {0.00}

1.00 {0.04}

-

-

23

0.50 {0.02}

1.20 {0.05}

-0.20 {-0.01}

-

N

24

0.00 {0.00}

2.10 {0.08}

-2.10 {-0.08}

-

25

2.00 {0.08}

4.00 {0.16}

0.00 {0.00}

-

26

0.50 {0.02}

12.50 {0.06}

-0.50 {-0.02}

-

No.	Measurement part	Standard values (mm) {in}	Maximum values (mm) {in}	Minimum values (mm) {in}	Side by side difference (mm) {in}
A	1	6.00 {0.24}	7.00 {0.28}	5.00 {0.20}	1.20 {0.05}
A	2	-1.00 {-0.04}	0.00 {0.00}	-2.00 {0.08}	-
B	3	6.00 {0.24}	7.00 {0.28}	5.00 {0.20}	-
B	4	1.00 {0.04}	2.00 {0.08}	0.00 {0.00}	-
C	5	4.30 {0.17}	6.80 {0.27}	1.80 {0.07}	2.00 {0.08}
C	6	2.50 {0.10}	5.10 {0.20}	-0.10 {-0.004}	-
D	7	4.90 {0.19}	6.70 {0.26}	3.10 {0.12}	1.80 {0.07}
D	8	2.00 {0.08}	3.80 {0.15}	0.20 {0.01}	-
E	9	0.00 {0.00}	0.50 {0.02}	-	-
F	10	0.00 {0.00}	0.50 {0.02}	-	-
G	11	3.50 {0.14}	4.50 {0.18}	-	1.00 {0.04}
G	12	0.00 {0.00}	1.00 {0.04}	-1.00 {-0.04}	-
H	13	4.00 {0.16}	5.20 {0.21}	2.80 {0.11}	-
H	14	1.00 {0.039}	2.20 {0.09}	-0.20 {-0.01}	-
I	15	1.20 {0.058}	2.20 {0.09}	0.20 {0.01}	-
I	16	2.30 {0.09}	4.30 {0.17}	0.30 {0.01}	-
J	17	1.20 {0.05}	2.50 {0.10}	0.10 {0.004}	-
J	18	2.99 {0.12}	4.49 {0.18}	1.49 {0.06}	-
K	19	4.00 {0.16}	6.50 {0.26}	1.50 {0.06}	2.00 {0.08}
K	20	-1.50 {-0.06}	0.50 {0.02}	-3.50 {-0.14}	-
L	21	6.00 {0.24}	8.00 {0.32}	4.00 {0.16}	2.00 {0.08}
M	22	0.00 {0.00}	1.00 {0.04}	-	-
M	23	0.50 {0.02}	1.20 {0.05}	-0.20 {-0.01}	-
N	24	0.00 {0.00}	2.10 {0.08}	-2.10 {-0.08}	-
	25	2.00 {0.08}	4.00 {0.16}	0.00 {0.00}	-
	26	0.50 {0.02}	12.50 {0.06}	-0.50 {-0.02}	-
