TRANSFER DISASSEMBLY (VEHICLES WITH TRANSFER OIL COOLER)

id031600511000


Before Service Precautions

•  To prevent foreign material from entering the transfer, perform disassembly and servicing in a clean, dust-free environment.
•  Inspect the each part while disassembling.
Warning
•   The engine stand is equipped with a self-lock mechanism. However, if the transfer is tilted, the self-lock mechanism could become inoperative. This could cause the transfer to rotate accidentally, resulting in injury. Therefore, make sure that the transfer is not tilted when it is on the engine stand. When turning the transfer, grasp the rotation handle firmly.

Transfer Component Disassembly

bawuua00000167

1
Drain plug
2
Oil level plug
3
Oil cooler
4
Drive gear case component
5
Front carrier component


Transfer Component Disassembling Procedure

1.  Assemble the SSTs.

bawuua00000168

2.  Install the transfer component to the SSTs.

bawuua00000169

3.  Remove the oil cooler.

4.  Remove the drive gear case component.


Drive Gear Case Component Disassembly

bawuua00000170

1
Oil seal (RH outer)
2
Drive gear shaft
3
Bearing cap
4
Adjustment shim
5
Spacer
6
Drive gear component
7
Bearing outer race (LH)
8
Bearing outer race (RH)
9
Bearing (RH)
10
Bearing (LH)
11
Drive gear
12
Oil seal (RH inner)
13
Oil seal (LH outer)
14
Oil seal (LH inner)
15
Baffle plate
16
Drive gear case


Drive Gear Case Component Disassembly Procedure

1.  Install the drive gear case component to the SST.

bawuua00000171

2.  Tap the drive gear shaft using a suitable rod and hammer.

bawuua00000172

3.  Take out the drive gear shaft from the drive gear case.

bawuua00000173

4.  Make alignment marks on the bearing cap and drive gear case.

bawuua00000174

5.  Remove the bearing cap.

6.  Insert a flathead screwdriver into spacer notch and remove the adjustment shim.

bawuua00000175

Caution
•  Place a rag on the case to protect it from damage.
bawuua00000176

7.  Remove the spacer.

bawuua00000177

8.  Remove the drive gear component.

bawuua00000178

9.  Using a tape-wrapped flathead screwdriver, remove the oil seal (LH outer).

bawwza00000003

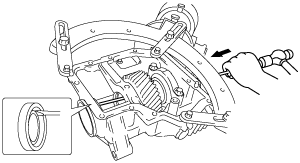

10.  Insert a flathead screwdriver in the direction of the arrow and tap the oil seal (LH inner) to remove it.

bawwza00000004

11.  Using a tape-wrapped pliers, remove the oil seal (RH outer).

bawwza00000005

12.  Insert a flathead screwdriver in the direction of the arrow and tap the oil seal (RH inner) to remove it.

bawwza00000006

13.  Using the SST, remove the bearing outer race (LH).

bawuua00000182

(1)  Install the SSTs (49 W032 202, 49 S019 005).
bawuua00000183
(2)  Connect the SST (49 T032 316, 49 T032 317) to the SSTs (49 W032 202, 49 S019 005).
bawuua00000184

14.  Remove the baffle plate.

bawuua00000185

15.  Using the SST, remove the bearing (RH).

bawuua00000186

16.  Using a flathead screwdriver, deform the bearing roller guide (LH) and remove it.

bawuua00000187

17.  Using the SST, remove the bearing inner race (LH).

bawuua00000188


Front Carrier Component Disassembly

bawwza00000008

1
Oil pipe
2
Oil strainer
3
Side cover
4
Ring gear lockbolt
5
Oil pump
6
Oil pump shaft
7
Bearing cap
8
Tubular pin
9
Ring gear component
10
Adjustment shim
11
Spacer
12
Bearing outer race (side)
13
Bearing (side)
14
Ring gear
15
Ring gear shaft
16
Locknut
17
Washer
18
Companion flange
19
Oil seal
20
Drive pinion gear
21
Bearing (rear)
22
Distance piece
23
Bearing (front)
24
Spacer
25
Bearing outer race (front)
26
Bearing outer race (rear)


Front Carrier Component Disassembling Procedure

1.  Install the front carrier component to the SST.

bawuua00000190

2.  Remove the oil strainer.

3.  Remove the oil pipe.

4.  Remove the side cover.

5.  Remove the oil pump by turning it using pliers as shown in the figure.

bawuua00000191

•  If the oil pump shaft remains in the gear shaft side, remove the oil pump shaft.

6.  Make alignment marks on the bearing caps and front carrier.

bawuua00000192

7.  Remove the bearing caps and tubular pins.

Note
•  If the bearing caps cannot be removed, lightly tap the bearing caps using a plastic hammer to remove them. If the bearing caps still cannot be removed, remove the bearing caps and ring gear component as a single unit in Step 11.

8.  Using a suitable wrench, secure the ring gear shaft, and remove the ring gear lockbolt.

bawuua00000193

9.  Using the SST, secure the companion flange, and remove the locknut and washer.

bawuua00000546

10.  Using the SST, remove the companion flange.

bawuua00000536

11.  Using the SSTs, remove the ring gear component.

bawuua00000196

12.  Remove the adjustment shims and spacer.

13.  Install an appropriate nut to the drive pinion to prevent the thread from being damaged.

bawuua00000537

14.  Lightly tap the drive pinion using a copper hammer and remove the drive pinion gear.

15.  Using a flathead screwdriver, remove the oil seal.

bawuua00000198

16.  Remove the bearing (rear) and distance piece.

17.  Using the SST, remove the bearing (front).

bawuua00000199

18.  Remove the spacer.

19.  Attach the brass stick to the notch, tap the race end lightly and evenly, then remove the bearing outer races.

bawuua00000200
bawuua00000201

20.  Using the SSTs, remove the bearing (side) (opposite ring gear side).

bawuua00000202

21.  Using a SST, remove the bearing (side) (ring gear side) together with ring gear.

bawuua00000203

Substitution SST
•  49 T032 302
Outer diameter: 25—30 mm {0.99—1.18 in}
Plate thickness: 1 mm {0.04 in} or more
