C1 CLUTCH COMPONENT DISASSEMBLY

id051700500700

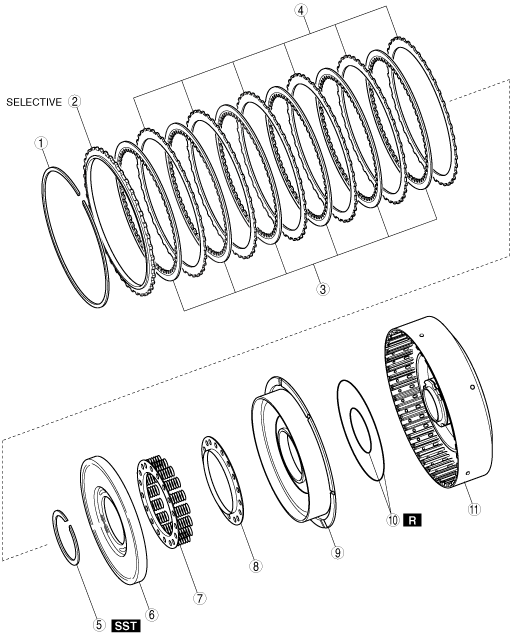

Components

bawuua00000370

1	Snap ring
2	Retaining plate
3	Drive plate
4	Driven plate
5	Snap ring
6	C1 clutch balancer
7	Piston return spring
8	Spring retainer
9	C1 clutch piston
10	O-ring
11	C1 clutch drum

Disassembly Procedure

1.  Using a flathead screwdriver, remove the snap ring from the C1 clutch drum.

bawuua00000371

2.  Remove the retaining plate, drive and driven plates from the C1 clutch drum.

bawuua00000372

Note

•  Inspect the number of drive and driven plates.

3.  Place the SST on the clutch balancer and compress the return spring with a press.

bawuua00000373

Caution

•  Do not expand the snap ring too much.

4.  Remove the snap ring using snap ring pliers.

Caution

•  Do not damage the seal on the clutch balancer.

5.  Remove the clutch balancer, return spring and the retainer from the C1 clutch drum.

bawuua00000374

6.  While pushing the C1 clutch piston by hand, apply compressed air into the oil passage as shown in the figure and remove the forward clutch piston from the C1 clutch drum.

bawuua00000375

Note

•  When applying compressed air, block the one oil passage of the C1 clutch drum as shown in the figure.

7.  Remove the O-rings from the C1 clutch drum.

bawuua00000376
