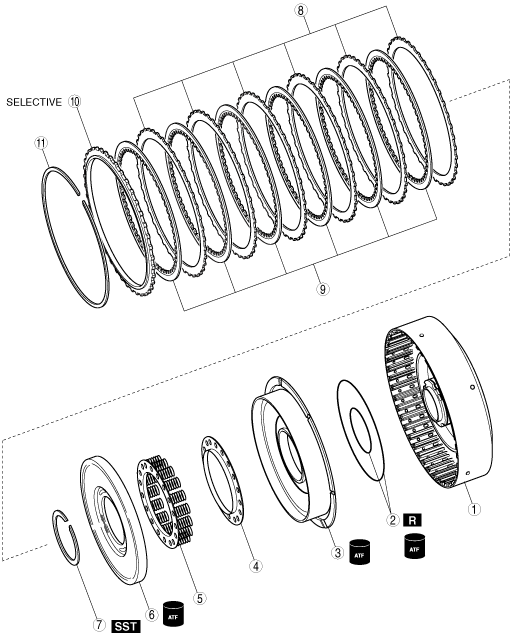

C1 CLUTCH COMPONENT ASSEMBLY

id051700500900


Components

bawuua00000377

1
C1 clutch drum
2
O-ring
3
C1 clutch piston
4
Spring retainer
5
Piston return spring
6
C1 clutch balancer
7
Snap ring
8
Driven plate
9
Drive plate
10
Retaining plate
11
Snap ring


Assembly Procedure

1.  Apply ATF to the new O-rings and the C1 clutch drum.

2.  Install the O-rings to the C1 clutch drum.

bawuua00000378

3.  Apply ATF to the sliding surface of the forward clutch piston.

Caution
•  Do not damage the seal on the piston and O-ring.

4.  Install the C1 clutch piston to the C1 clutch drum.

bawuua00000379

5.  Apply ATF to the seal on the clutch balancer.

Caution
•  Do not damage the seal on the clutch balancer.

6.  Install the retainer, return spring and the clutch balancer to the C1 clutch drum.

bawuua00000380

7.  Place the SST on the clutch balancer and compress the return spring component with a press.

bawuua00000381

Caution
•  When installing the snap ring, set the end gap of the snap ring as shown in the figure.
•  Do not expand the snap ring too much.

8.  Install the snap ring in the groove using snap ring pliers.

9.  Install the driven plates, drive plates and the retaining plate in the following order to the C1 clutch drum as shown in the figure.

bawuua00000382

Six drive plates type
•  Driven—Drive—Driven—Drive—Driven—Drive—Driven—Drive—Driven—Drive—Driven—Drive—Retaining
Seven drive plates type
•  Driven—Drive—Driven—Drive—Driven—Drive—Driven—Drive—Driven—Drive—Driven—Drive—Driven—Drive—Retaining
bawuua00000383
Caution
•  Inspect the number and order of the retaining plate, drive and driven plates.

10.  Using a flathead screwdriver, install the snap ring in the groove.

bawuua00000384

Caution
•  When installing the snap ring, set the end gap of the snap ring as shown in the figure.

11.  Install the C1 clutch component on the input shaft and set a dial indicator as shown in the figure.

bawuua00000385

12.  Apply compressed air as shown in the figure and measure the C1 clutch piston stroke.

Air pressure
200 kPa {2.0 kgf/cm2, 29 psi}
C1 clutch piston stroke
1.2 — 1.4 mm {0.047 — 0.055 in}
•  If not within the specification, select an appropriate retaining plate.

Retaining plate size

Identification mark

Thickness (mm {in})
1
2.8 {0.110}
2
2.9 {0.114}
3
3.0 {0.118}
4
3.1 {0.122}
A
3.15 {0.124}
5
3.2 {0.126}
B
3.25 {0.128}
6
3.3 {0.130}
C
3.35 {0.132}
7
3.4 {0.134}
8
3.5 {0.138}
