DTC P0231 [MZI-3.7]
id0102d2819800
|
DTC P0231 |
FP secondary circuit low |
|---|---|
|

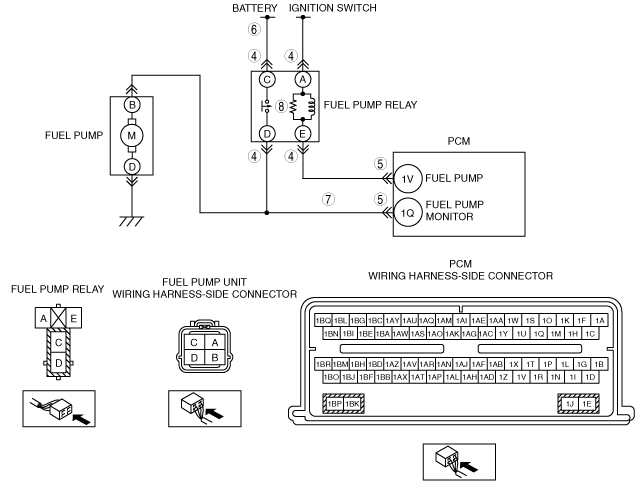

DETECTION CONDITION
|
• The PCM monitors the fuel pump monitor circuit. The test fails if the PCM commands the fuel pump ON and B+ voltage is not detected on the FPM circuit.
|
|
POSSIBLE CAUSE
|
• Fuel pump relay malfunction
• Connector or terminal malfunction
• Open circuit between battery and fuel pump relay terminal C
• Open circuit between fuel pump relay terminal D and PCM terminal 1Q
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|
VERIFY RELATED PENDING CODE OR STORED DTC
• Verify the related PENDING CODE or stored DTCs.
• Are other DTCs present?
|
Yes
|
Go to appropriate DTC inspection.
(See DTC TABLE [MZI-3.7].)
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT FUEL PUMP RELAY CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the fuel pump relay.
• Inspect for poor connection (such as damaged/ pulled-out pins, corrosion).
• Are there malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 9.
|
|
No
|
Go to the next step.
|
||
|
5
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect PCM connector.
• Inspect for poor connection (such as damaged/ pulled-out pins, corrosion).
• Are there malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 9.
|
|
No
|
Go to the next step.
|
||
|
6
|
INSPECT FUEL PUMP RELAY POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch to the ON position (Engine off).
• Measure voltage between fuel pump relay connector terminal C (wiring harness-side) and body ground.
• Is voltage B+?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace suspected part, then go to Step 9.
|
||
|
7
|
INSPECT FUEL PUMP MONITOR CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch off.
• Inspect continuity between fuel pump relay terminal D (wiring harness-side) and PCM terminal 1Q (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace suspected part, then go to Step 9.
|
||
|
8
|
INSPECT FUEL PUMP RELAY
• Inspect the fuel pump relay.
(See RELAY INSPECTION.)
• Is there any malfunction?
|
Yes
|
Replace the fuel pump relay, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
9
|
VERIFY TROUBLESHOOTING OF DTC P0231 HAS BEEN COMPLETED
• Verify that all disconnected connectors reconnected.
• Clear DTC from memory using the M-MDS.
• Start the engine.
• Perform the “KOEO/KOER self-test”
• Is same DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [MZI-3.7].)
|
|
No
|
Troubleshooting completed.
|
||
