DRIVE BELT CONSTRUCTION [MZI-3.7]
id0110c5102500

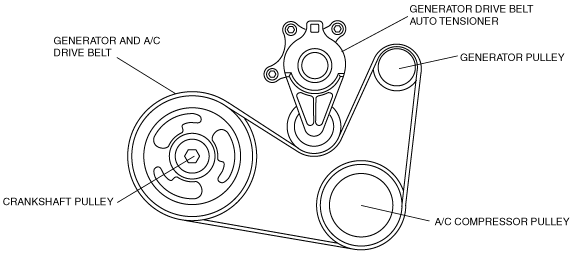

Generator and A/C Drive Belt
• A V-ribbed drive belt is employed.
• A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.

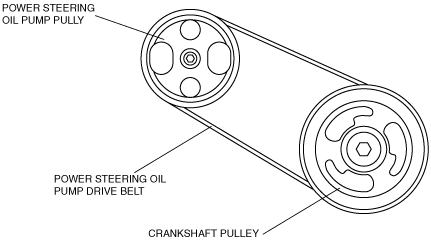

Power Steering Oil Pump Drive Belt
• A V-ribbed drive belt is employed.
• For the removal/installation of the power steering oil pump drive belt, rotate the crankshaft using the SST and remove/install.
