ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7]

id0110c5804300

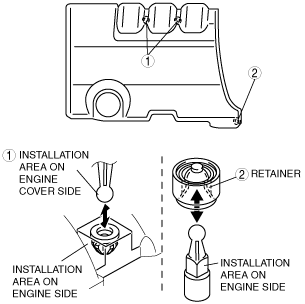

1.  Remove the engine cover in the order indicated in the figure.

Note

•  Firmly pull the engine cover near the locations shown to disengage the retainers.

ac9uuw00000168

2.  Install in the reverse order of removal.
