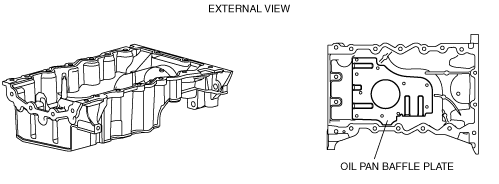

OIL PAN CONSTRUCTION [MZI-3.7]


id0111e3100400

•  An aluminum alloy oil pan has been adopted for noise reduction.
•  An oil pan baffle plate has been adopted inside the oil pan to stabilize engine oil diffusion by crankshaft rotation and oil level when the vehicle rolls.
•  A silicon sealant with excellent sealing qualities has been adopted.
ac9uun00000469
