COOLING FAN COMPONENT CONSTRUCTION [MZI-3.7]


id0112d3100500

•  The cooling fan component consists of the radiator cowling, cooling fans, cooling fan motors, and fan control module.
•  Electric cooling fans No.1 and No.2, which operate according to the fan control signals sent from the PCM to the fan control module, have been adopted. Due to this, engine noise has been reduced and rapid engine warming-up is possible.
•  The radiator cowling and cooling fans are made of plastic for weight reduction.

Single fan control module

ac9uun00000475

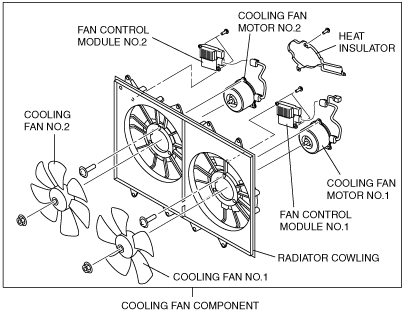

Dual fan control module

ac9uun00000476

Cooling fan, cooling fan motor specification

Item

Specification

No.1

No.2

Cooling fan
Number of blades
5
7
Outer diameter
(mm {in})
360 {14.2}
Cooling fan motor output
(W)
Single fan control module: 160
Dual fan control module: 240
