FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [MZI-3.7]

id0114d2801000

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

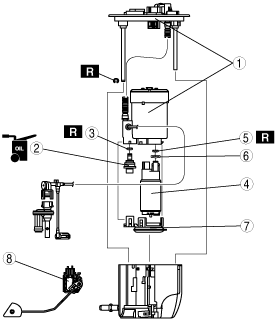

ac9uuw00000273

1	Fuel filter body
2	Pressure regulator
3	O-ring
4	Fuel pump
5	O-ring
6	Spacer
7	Fuel filter (low-pressure)
8	Sender gauge
