CHARCOAL CANISTER, CANISTER VENT (CV) SOLENOID VALVE, AIR FILTER COMPONENT REMOVAL/INSTALLATION [MZI-3.7]

id0116d2819100

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

Note

•  Remove the charcoal canister, CV solenoid valve, and air filter as a single unit.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

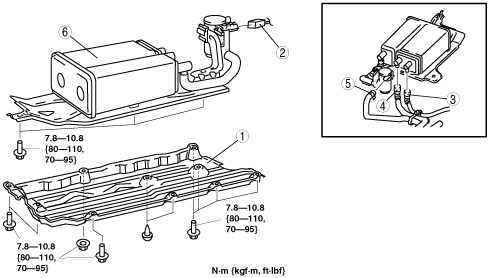

ac9uuw00000312

1	Under guard (LH)
2	CV solenoid valve connector
3	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZI-3.7].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZI-3.7].)
5	Evaporative hose
6	Charcoal canister, CV solenoid valve, air filter component
