DLC-2 CONSTRUCTION


id040200111100

•  A connector (DLC-2) conforming to International Organization for Standardization (ISO) standards has been added.

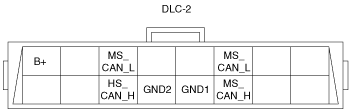

•  Shape and terminal arrangement as stipulated by the ISO 15031-3 (SAE J1962) international standard has been adopted for this connector. The connector has a 16-pin construction that includes the HS_CAN_H, HS_CAN_L, MS_CAN_H, MS_CAN_L, GND1, GND2 and B+ terminals.
ac9uun00000257

Terminal

Function

HS_CAN_L
Serial communication Lo terminal (HS)
HS_CAN_H
Serial communication Hi terminal (HS)
MS_CAN_L
Serial communication Lo terminal (MS)
MS_CAN_H
Serial communication Hi terminal (MS)
GND1
Body ground terminal
GND2
Serial communication ground terminal
B+
Battery power supply terminal
