DISC PAD (REAR) REPLACEMENT

id041100800300

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

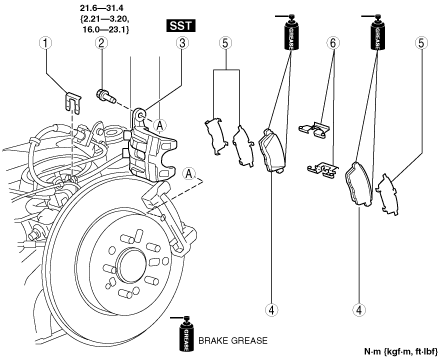

ac9wzw00000139

1	Clip
2	Bolt
3	Caliper (See REAR BRAKE (DISC) REMOVAL/INSTALLATION)
4	Disc pad
5	Shim
6	Guide plate
