REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION


id041800816900

1.  Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION.)

2.  Remove the seat side box. (See SEAT SIDE BOX REMOVAL/INSTALLATION.)

3.  Remove the third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION.)

4.  Remove the rear scuff plate inner. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

5.  Remove the third-row seat belt lower anchor installation bolt. (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)

6.  Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

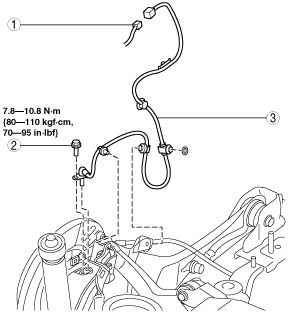

7.  Remove in the order indicated in the table.

ac9wzw00000147

1
Rear ABS wheel-speed sensor connector
2
Bolt
3
Rear ABS wheel-speed sensor

8.  Install in the reverse order of removal.
