COUPLER COMPONENT (TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR) OUTLINE [AW6AX-EL]

id0517j6101000

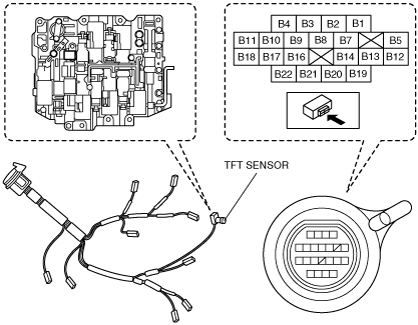

•  The coupler component are installed on the transaxle case as the grouped connectors of the TFT sensor, input/turbine speed sensor, VSS and solenoids.
•  The TFT sensor, which is integrated with the coupler component, is installed on the front valve body. It directly detects the TFT within the hydraulic pressure control circuit and transmits a signal based on that temperature to the TCM. Through this, it controls gear shift, TCC and slip in response to changes in TFT for smooth shifting across wide TFT zones.
acxuun00000609

Terminal No.

Signal
B1
Line pressure control solenoid (–)
B2
Shift solenoid B
B3
Line pressure control solenoid (+)
B4
TCC control solenoid (–)
B5
Shift solenoid A
B6
—
B7
TFT sensor (–)
B8
TFT sensor (+)
B9
TCC control solenoid (+)
B10
Shift solenoid C (–)
B11
Shift solenoid C (+)
B12
Input/turbine speed sensor (+)
B13
Input/turbine speed sensor (–)
B14
Shift solenoid E (+)
B15
—
B16
Shift solenoid F (–)
B17
Shift solenoid D (+)
B18
Shift solenoid D (–)
B19
VSS (+)
B20
VSS (–)
B21
Shift solenoid F (+)
B22
Shift solenoid E (–)

acxuun00000610
