STEERING GEAR AND LINKAGE CONSTRUCTION


id061400100600

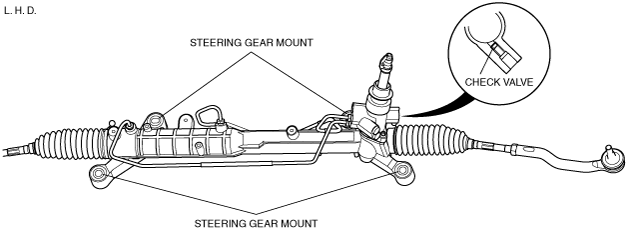

•  A size and weight reduced rack and pinion system steering gear has been adopted.
•  Heightened support rigidity has been achieved due to the integration of the steering gear mounts and gear housing, improving response and steering stability.
•  A check valve equipped to the power steering fluid intake port (pressure side) prevents the power steering fluid from flowing back as a result of road surface resistance. Due to this, kickback from the road surface is reduced.
ac9wzn00000228
ac9wzn00000229
