DTC 61

id070200803900

DTC 61

Passenger-side front air mix actuator (motor lock) (past)

POSSIBLE CAUSE

•  Passenger-side front air mix actuator malfunction

•  Front A/C unit (air mix link and/or air mix crank) malfunction

•  Open or short circuit between passenger-side front air mix actuator and front climate control unit

DTC 61	Passenger-side front air mix actuator (motor lock) (past)
POSSIBLE CAUSE	• Passenger-side front air mix actuator malfunction • Front A/C unit (air mix link and/or air mix crank) malfunction • Open or short circuit between passenger-side front air mix actuator and front climate control unit

Diagnostic Procedure

STEP	INSPECTION		ACTION

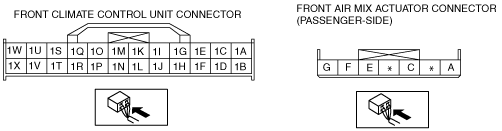

1	• Disconnect passenger-side front air mix actuator connector. • Connect battery positive voltage to terminal F (or terminal G) and ground to terminal G (or terminal F) of passenger-side front air mix actuator connector. • Does passenger-side front air mix actuator operate?	Yes	Connect passenger-side front air mix actuator connector, then go to Step 3.
1		No	Go to the next step.
2	• Remove passenger-side front air mix actuator. (See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.) • Operate air mix link by hand. • Does air mix link operate smoothly?	Yes	Replace passenger-side front air mix actuator.
2		No	Replace air mix link and/or air mix crank.
3	• Disconnect front climate control unit connect (24-pin). • Connect battery positive voltage to terminal 1C (or terminal 1E) and ground to terminal 1E (or terminal 1C) of front climate control unit connector (24-pin). • Does passenger-side front air mix actuator operate?	Yes	Inspect the connection of the front climate control unit connector.
3		No	Repair wiring harness.
