Rear air mix actuator (motor lock) (past)

POSSIBLE CAUSE

•  Rear air mix actuator malfunction

•  Rear A/C unit (air mix link and/or air mix crank) malfunction

•  Open or short circuit between rear air mix actuator and front climate control unit

DTC 95	Rear air mix actuator (motor lock) (past)
POSSIBLE CAUSE	• Rear air mix actuator malfunction • Rear A/C unit (air mix link and/or air mix crank) malfunction • Open or short circuit between rear air mix actuator and front climate control unit

Diagnostic Procedure

STEP	INSPECTION		ACTION

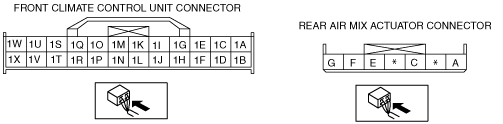

1	• Disconnect rear air mix actuator connector. • Connect battery positive voltage to terminal F (or terminal G) and ground to terminal G (or terminal F) of rear air mix actuator connector. • Does rear air mix actuator operate?	Yes	Connect rear air mix actuator connector, then go to Step 3.
1		No	Go to the next step.
2	• Remove rear air mix actuator. (See REAR AIR MIX ACTUATOR REMOVAL/INSTALLATION.) • Operate air mix link by hand. • Does air mix link operate smoothly?	Yes	Replace rear air mix actuator.
2		No	Replace air mix link and/or air mix crank.
3	• Disconnect front climate control unit connect (24-pin). • Connect battery positive voltage to terminal 1I (or terminal 1G) and ground to terminal 1G (or terminal 1I) of front climate control unit connector (24-pin). • Does rear air mix actuator operate?	Yes	Inspect the connection of the front climate control unit connector.
3		No	Repair wiring harness.
