FRONT A/C UNIT DISASSEMBLY/ASSEMBLY
id071100802400
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
R.H.D.
ac9wzw00000514
|

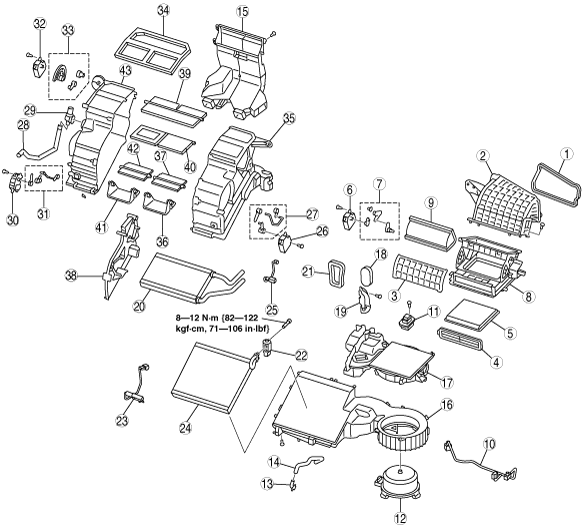

L.H.D.
ac9uuw00000676
|
|
1
|
Adhesive polyurethane (1)
|
|
2
|
Blower case (1)
|
|
3
|
Blower case cover (1)
|
|
4
|
Blower case cover (2)
|
|
5
|
Air filter
|
|
6
|
Air intake actuator
|
|
7
|
Air intake link set
|
|
8
|
Blower case (2)
|
|
9
|
Air intake door
|
|
10
|
Harness (2)
|
|
11
|
Front power MOS FET
|
|
12
|
Front blower motor
|
|
13
|
Grommet
|
|
14
|
Drain hose
|
|
15
|
Duct
|
|
16
|
A/C case (4)
|
|
17
|
Blower case (3)
|
|
18
|
Polyurethane foam (1)
|
|
19
|
A/C case bracket (2)
|
|
20
|
Front heater core
|
|
21
|
Polyurethane foam (2)
|
|
22
|
Front expansion valve
|
|
23
|
Front evaporator sensor
|
|
24
|
Front evaporator
|
|
25
|
Harness (1)
|
|
26
|
Passenger-side front air mix actuator
|
|
27
|
Air mix link set
|
|
28
|
Air hose
|
|
29
|
Air hose duct
|
|
30
|
Driver-side front air mix actuator
|
|
31
|
Air mix link set
|
|
32
|
Front airflow mode actuator
|
|
33
|
Airflow mode link set
|
|
34
|
Polyurethane foam (3)
|
|
35
|
A/C case (2)
|
|
36
|
Passenger-side air mix door (1)
|
|
37
|
Passenger-side air mix door (2)
|
|
38
|
A/C case (3)
|
|
39
|
Front airflow mode door (2)
|
|
40
|
Front airflow mode door (1)
|
|
41
|
Driver-side air mix door (1)
|
|
42
|
Driver-side air mix door (2)
|
|
43
|
A/C case (1)
|
