AIR INTAKE ACTUATOR CONSTRUCTION


id074000101700

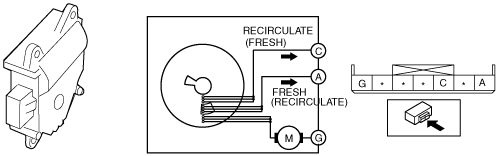

Construction

•  Moves the air intake door based on the signals from the front climate control unit to switch between REC and FRESH.
•  A sliding contact type has been adopted.

Operation

•  Based on the signals from the front climate control unit, the motor in the air intake actuator operates to move the air intake door to the target position.
•  When the door reaches the target position, the sliding junction turns off and the air intake door stops.
