AIRFLOW MODE CONTROL OPERATION
id074000102900
Airflow Mode Automatic Control
Front
-
• The front climate control unit determines the front mode actuator opening angle based on the target temperature.
Rear
-
• When the rear control switch is off, the rear airflow mode control determines the rear mode actuator opening angle using the target temperature for the rear which is calculated by the front climate control unit based on the set temperature which has been set using the driver-side temperature setting dial.
• When the rear control switch is on, the rear airflow mode control determines the rear mode actuator opening angle using the rear target temperature which is calculated by the front climate control unit based on the set temperature which has been set using the rear temperature setting dial.
Correction

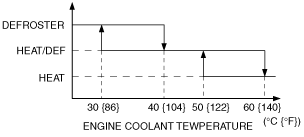

Warm-up correction
-
• Switches the airflow mode after the engine is started in winter in accordance with the increase in engine coolant temperature to prevent discomfort caused by cold air blown towards the feet.
MAX HOT and MAX COLD correction
-
Front
-
• When the set temperature is at 32.0 or 15.0, the airflow mode is set as shown in the table.
|
TEMPERATURE CONTROL DIAL
|
AIRFLOW MODE
|
|
DRIVER SIDE
|
PASSENGER SIDE
|
|
15.0
|
15.0
|
VENT
|
|
15.0
|
EXCEPT 15.0, 32.0
|
VENT
|
|
EXCEPT 15.0, 32.0
|
15.0
|
VENT
|
|
15.0
|
32.0
|
BI-LEVEL
|
|
32.0
|
15.0
|
BI-LEVEL
|
|
32.0
|
EXCEPT 15.0, 32.0
|
HEAT
|
|
EXCEPT 15.0, 32.0
|
32.0
|
HEAT
|
|
32.0
|
32.0
|
HEAT
|
-
Rear
-
• The airflow mode is fixed in heat with the set temperature of 32.0 (MAX HOT), and in vent with 15.0 (MAX COLD).
Airflow Mode Manual Control
• The airflow modes can be switched by operating the airflow mode selector switch and the front defroster switch.
|
FRONT
|
VENT, BI-LEVEL, HEAT, HEAT/DEF, DEFROSTER
|
