REFRIGERANT PRESSURE SWITCH INSPECTION

id074000802700

1.  Install the manifold.

2.  Disconnect the refrigerant pressure switch connector.

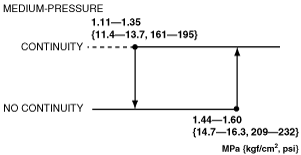

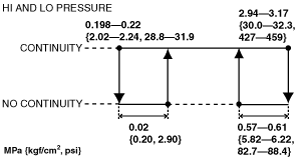

3.  Verify the high‐pressure side reading of the gauge and continuity between the refrigerant pressure switch terminals.

•  If there is any malfunction, replace the refrigerant pressure switch.

am8rrw00000837

am8rrw00000838

am8rrw00000839
