REAR EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION

id074000804400

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2)  Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)

(3)  Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)

(4)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(7)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(8)  Console cover (See CONSOLE COVER REMOVAL/INSTALLATION.)

(9)  Console (See CONSOLE REMOVAL/INSTALLATION.)

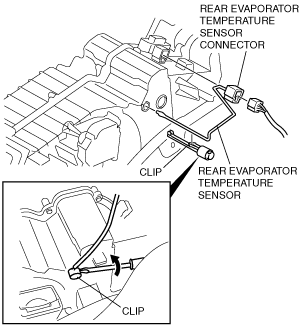

3.  Disconnect the rear evaporator temperature sensor connector and remove it from the rear A/C unit.

ac9uuw00001036

4.  Insert a flathead screwdriver as shown in the figure and remove the clip by prying it off.

5.  Remove the rear evaporator temperature sensor.

6.  Install in the reverse order of removal.
