FRONT AIRFLOW MODE ACTUATOR INSPECTION

id074000804500

1. Connect battery positive voltage to front airflow mode actuator terminal F (or G), connect terminal G (or F) to ground, and then verify that the front airflow mode actuator operates as shown in the table.

• If the operation condition is not normal, replace the front airflow mode actuator.

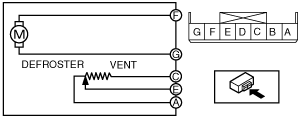

ac9uuw00001114

Terminal

Front airflow mode actuator operation

F

G

B+

Ground

VENT → DEFROSTER

Ground

B+

DEFROSTER → VENT

Terminal	Front airflow mode actuator operation
B+	Ground	VENT → DEFROSTER
Ground	B+	DEFROSTER → VENT

am8rrw00000825

2. Verify that the resistance between terminals C and E, and E and A matches the front airflow mode actuator operation as shown in the graph.

am8rrw00000826

• If the operation condition and resistance are not normal, replace the front airflow mode actuator.
