REAR CLIMATE CONTROL UNIT INSPECTION

id074000805500

1. Connect the rear climate control unit connector.

2. Turn the ignition switch to the ON position.

3. Connect the negative (-) lead of the tester to body ground.

4. By inserting the positive (+) lead of the tester into each rear climate control unit terminal, measure the voltage according to the terminal voltage table.

• If there is any malfunction, inspect the parts under “Inspection item (s)”.

― If the parts under “Inspection item (s)” are found to be normal, replace the rear climate control unit.

Terminal voltage table (Reference)

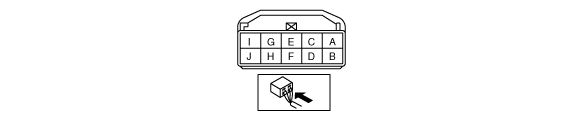

ac9wzw00003039

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

A

Rear fan control volume

Front climate control unit

Airflow volume control dial

Off

1.0 or less

•  Front climate control unit: terminal voltage (1T)

•  Wiring harness: continuity, short circuit (Front climate control unit—rear climate control unit: 3E—A)

•  Rear climate control unit

1st.

Approx. 1.3

Max HI

Approx. 4.0

B

TNS signal

Front climate control unit

Turn the headlight switch to the off position

1.0 or less

•  Wiring harness: continuity, short circuit (Front climate control unit—rear climate control unit: 3F—B)

•  TNS relay

•  Headlight switch

Turn the headlight switch to the TNS position

B+

C

Rear temperature control volume

Front climate control unit

Temperature control dial: Moving towards COLD

1.0 or less

•  Wiring harness: continuity, short circuit (Front climate control unit—rear airflow mode actuator: 3G—C)

•  Rear climate control unit

•  Front climate control unit: terminal voltage (2B)

Temperature control dial: Moving towards medium temperature

Approx. 2.5

Temperature control dial: Moving towards HOT

Approx. 4.2

D

Panel light control input

Instrument cluster

Turn the headlight switch to the off position

1.0 or less

•  Wiring harness: continuity, short circuit (Rear climate control unit—instrument cluster: D—1I)

•  TNS relay

•  Headlight switch

Turn the headlight switch to the TNS position

B+

E

—

—

—

—

—

F

+5 V

Front climate control unit

Under any condition

5.0

•  Front climate control unit: terminal voltage (3H)

•  Wiring harness: continuity (Front climate control unit—rear climate control unit: 3H—F)

G

Ground

Front climate control unit

Under any condition: Inspect for continuity to ground

1.0 or less

•  Wiring harness: continuity (Front climate control unit—rear climate control unit: 3I—G)

H

—

—

—

—

—

I

—

—

—

—

—

J

Rear climate control unit display

Front climate control unit

Rear control switch on

B+

•  Wiring harness: continuity (Front climate control unit—rear climate control unit: 3C—J)

Rear control switch off

1.0 or less

•  Wiring harness: short circuit (Front climate control unit—rear climate control unit: 3C—J)

•  Front climate control unit: terminal voltage (1W, 1X)

K

—

—

—

—

—

L

—

—

—

—

—

Terminal	Signal name	Connected to	Measurement condition		Voltage (V)	Inspection item (s)
A	Rear fan control volume	Front climate control unit	Airflow volume control dial	Off	1.0 or less	• Front climate control unit: terminal voltage (1T) • Wiring harness: continuity, short circuit (Front climate control unit—rear climate control unit: 3E—A) • Rear climate control unit
				1st.	Approx. 1.3
				Max HI	Approx. 4.0
B	TNS signal	Front climate control unit	Turn the headlight switch to the off position		1.0 or less	• Wiring harness: continuity, short circuit (Front climate control unit—rear climate control unit: 3F—B) • TNS relay • Headlight switch
B	TNS signal	Front climate control unit	Turn the headlight switch to the TNS position		B+
C	Rear temperature control volume	Front climate control unit	Temperature control dial: Moving towards COLD		1.0 or less	• Wiring harness: continuity, short circuit (Front climate control unit—rear airflow mode actuator: 3G—C) • Rear climate control unit • Front climate control unit: terminal voltage (2B)
			Temperature control dial: Moving towards medium temperature		Approx. 2.5
			Temperature control dial: Moving towards HOT		Approx. 4.2
D	Panel light control input	Instrument cluster	Turn the headlight switch to the off position		1.0 or less	• Wiring harness: continuity, short circuit (Rear climate control unit—instrument cluster: D—1I) • TNS relay • Headlight switch
D	Panel light control input	Instrument cluster	Turn the headlight switch to the TNS position		B+
E	—	—	—		—	—
F	+5 V	Front climate control unit	Under any condition		5.0	• Front climate control unit: terminal voltage (3H) • Wiring harness: continuity (Front climate control unit—rear climate control unit: 3H—F)
G	Ground	Front climate control unit	Under any condition: Inspect for continuity to ground		1.0 or less	• Wiring harness: continuity (Front climate control unit—rear climate control unit: 3I—G)
H	—	—	—		—	—
I	—	—	—		—	—
J	Rear climate control unit display	Front climate control unit	Rear control switch on		B+	• Wiring harness: continuity (Front climate control unit—rear climate control unit: 3C—J)
J	Rear climate control unit display	Front climate control unit	Rear control switch off		1.0 or less	• Wiring harness: short circuit (Front climate control unit—rear climate control unit: 3C—J) • Front climate control unit: terminal voltage (1W, 1X)
K	—	—	—		—	—
L	—	—	—		—	—
