FRONT AIR MIX ACTUATOR INSPECTION

id074000805700


Driver Side

1.  Connect battery positive voltage to front air mix actuator terminal F (or G), connect terminal G (or F) to ground, and then verify that the front air mix actuator operates as shown in the table.

•  If the operation condition is not normal, replace the front air mix actuator.
ac9uuw00002424

Terminal

Front air mix actuator operation

F

G
B+
Ground
HOT → COLD
Ground
B+
COLD → HOT

am8rrw00001844

2.  Verify that the resistance between terminals A and E, and E and C matches the front air mix actuator operation as shown in the graph.

am8rrw00000833

•  If the operation condition and resistance are not normal, replace the front air mix actuator.


Passenger Side

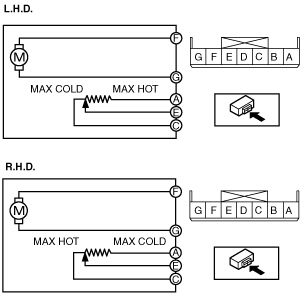

1.  Connect battery positive voltage to front air mix actuator terminal F (or G), connect terminal G (or F) to ground, and then verify that the front air mix actuator operates as shown in the table.

•  If the operation condition is not normal, replace the front air mix actuator.
ac9wzw00000710

L.H.D.

Terminal

Front air mix actuator operation

F

G
B+
Ground
COLD → HOT
Ground
B+
HOT → COLD

R.H.D.

Terminal

Front air mix actuator operation

F

G
B+
Ground
HOT → COLD
Ground
B+
COLD → HOT

ac9uuw00002301

2.  Verify that the resistance between terminals A and E, and E and C matches the front air mix actuator operation as shown in the graph.

L.H.D.

ac9uuw00002425

R.H.D.

am8rrw00000833
•  If the operation condition and resistance are not normal, replace the front air mix actuator.
