CABIN TEMPERATURE SENSOR INSPECTION

id074000807700

1.  Measure the temperature around the cabin temperature sensor and measure the resistance between cabin temperature sensor terminal.

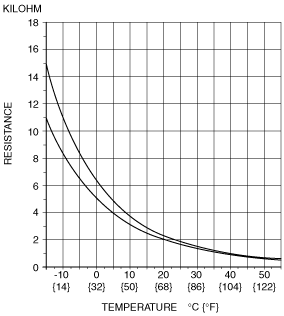

•  If the characteristics of the cabin temperature sensor are not as shown in the graph, replace the cabin temperature sensor.

am8rrw00000835
