DOOR CONSTRUCTION


id091100100100

•  The internal parts of the door have been integrated into a door module.
ac9uun00000414

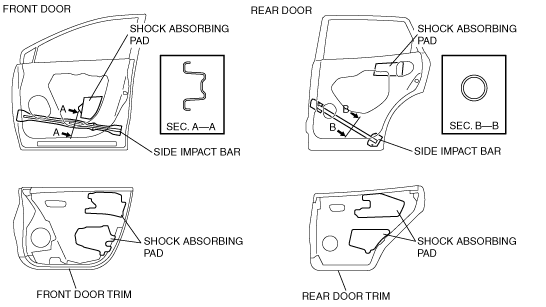

•  A corrugated side impact bar and cylindrical side impact bar have been adopted to improve rigidity in case of collision.
•  The side impact bars, located on the door, prevents the door from deforming inward by dispersing the impact to the floor in case of a side-impact collision.
•  The shock absorbing pad, located inside the door trim and door, functions to soften collision impact.
ac9uun00000415
