LIFTGATE ADJUSTMENT


id091100800900

1.  Measure the gap and height between the liftgate and the body.

2.  Loosen the liftgate hinge installation bolts and adjust the gap by moving the liftgate.

ac9uuw00000885

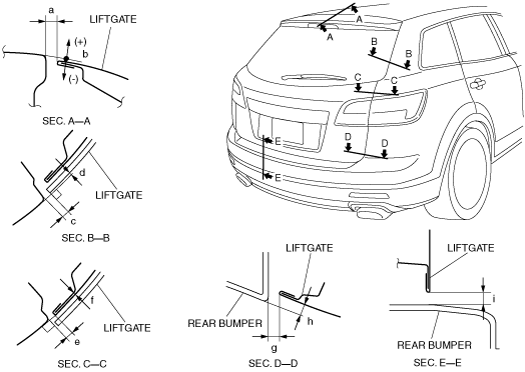

Clearance
a: 5.0—7.0 mm {0.19—0.27 in}
b: -2.0—0.0 mm {-0.08—0.00 in}
c: 1.8—6.8 mm {0.07—0.27 in}
d: -0.1—5.1 mm {-0.01—0.20 in}
e: 2.8—5.2 mm {0.11—0.20 in}
f: -0.2—2.2 mm {-0.01—0.08 in}
g: 1.5—6.5 mm {0.06—0.25 in}
h: -2.0—2.0 mm {0.08—0.08 in}
i: 4.0—8.0 mm {0.16—0.31 in}

3.  Tighten the bolts or screws.
