POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION

id091100803800

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Trunk box (See TRUNK BOX REMOVAL/INSTALLATION.)

(2)  Seat side box (LH) (See SEAT SIDE BOX REMOVAL/INSTALLATION.)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION.)

(5)  Third-row seat belt lower anchor installation bolt (LH) (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)

(6)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION)

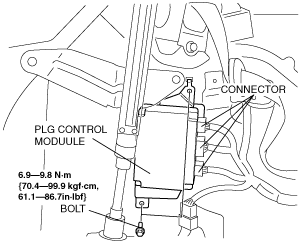

3.  Disconnect the PLG control module connector.

4.  Remove the bolts.

ac9uuw00000894

5.  Remove the PLG control module.

6.  Install in the reverse order of removal.
