EXTERIOR OPEN/CLOSE FUNCTION OPERATION
id091200102300
• With the system, front door glass can open/close in conjunction with the LOCK/UNLOCK operation of the driver-side key cylinder, transmitter, and request switch (with advanced keyless system).
• During IG OFF timer operation (power window system operates approx. 40 s after IG OFF), the power window switch operation has priority over the exterior open/close function.
• Automatic reverse operation has priority when the door glass is obstructed during close operation.
• The BCM sends the signal requiring the open/close operation to the power window control unit (power window main switch) based on the signals input from the switches.
• The power window control unit (power window main switch) sends open/close operation signal to the power window motor based on the required signal, and operates the door glass.
Open/Close Function/Operation in Conjunction with Key Operation
• Insert the key into the driver-side door key cylinder, hold in the LOCK or UNLOCK position for approx. 1.5 s (LOCK)/2.2 s (UNLOCK) or more to open/close the door glass.
• When the door glass is open; if the key is held in the LOCK position for approx. 1.5 s or more, the glasses perform manual close operation. When the key is returned to the neutral position, the operation stops.
• When the door glass is not fully open; if the key is held in the UNLOCK position for approx. 2.2 s or more, the glasses perform automatic open operation, and fully open the glasses. When the key is operated again*1 during the automatic open operation, it stays in that position.
*1 :The operation direction can be either the LOCK/UNLOCK. Also, the holding time is not factored.
Open Function/Operation in Conjunction with Transmitter
• When the door glass is not fully open, press the UNLOCK button once, then press again within 1.5 s and hold the button pressed, and the glasses perform manual open operation. If the UNLOCK button is released, manual open operation stops in that position.

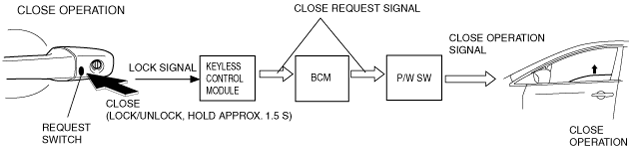

Close Function/Operation in Conjunction with Request Switch
• If the driver-side request switch is operated and held for approx. 1.5 s or more while the card key (transmitter) is within the reception area and the door glass is open, the glasses perform manual close operation. When the switch is released, the operation stops.
• During the operation, when the open/close function in conjunction with the key operation is performed, or the open/close function in conjunction with the transmitter is performed, these functions have priority over the operation.
Operation Prohibition/Stop Condition
• When the following conditions are met before the operation, the exterior open/close function does not operate. Also, if the conditions are met during the operation, the operation stops.
-
― Either door/liftgate is open (when the door switch or cargo compartment light switch is ON)
― The key is inserted in the steering lock (when the keyless switch is ON)
― The push switch is pressed in or the start knob (ignition switch) is in a position other than the LOCK (with advanced keyless system)
― The transmitter is not in the reception area
