FRONT DOOR GLASS REMOVAL/INSTALLATION

id091200800400

1.  Adjust the door glass position as shown in the figure.

ac9uuw00002334

2.  Disconnect the negative battery cable.

3.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

4.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

5.  Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

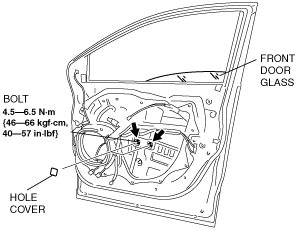

6.  Remove the hole cover.

ac9uuw00002034

7.  Remove the bolts.

8.  Lift the front door glass up and remove it in the direction of the arrow.

ac9uuw00002035

9.  Install in the reverse order of removal.

Note

•  When installing the front door glass, align the glass edge with the glass run channel by hand through the speaker installation hole.
