REARVIEW MIRROR REMOVAL [VEHICLES WITHOUT AUTO LIGHT/WIPER SYSTEM]

id0912008068a6

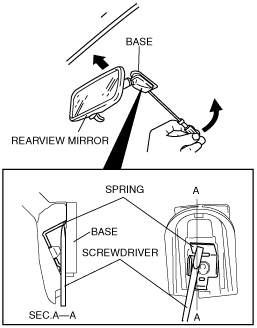

1.  Insert a flathead screwdriver between the mirror and the base.

ac9uuw00002383

2.  Insert the flathead screwdriver to the position shown in the figure and press the center part of the spring.

3.  Remove the rearview mirror in the direction of the arrow.

Caution

•  When removing the rearview mirror, the mirror may hit the top sealing, possibly damaging it. Therefore, hold the mirror body securely by hand when removing the rear view mirror so that the mirror does not contact it.
