SEAT POSITION MEMORY OPERATION

id091300200600

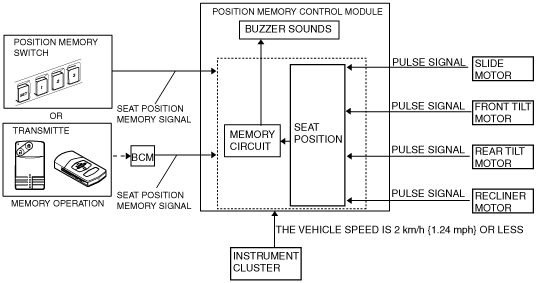

Seat Position Memory Operation

1.  A seat position memory signal is input to the seat memory control module when memory operations are performed using the transmitter or seat memory switch.

2.  When the seat memory control module receives a signal, the operation conditions are confirmed, and if the conditions are met, pulse signals from each motor are input to the memory circuit as seat positions.

3.  When a seat position is input to the memory circuit, the buzzer sounds and the seat position memory operation is finished.

ac9uun00000369

Seat Position Auto Call Up Operation

1.  A seat position call up signal is input to the seat memory control module when an auto call up operation is performed using the transmitter or the seat memory switch.

2.  When the seat memory control module receives the signal, the operation conditions are confirmed, and if the conditions are met, the applicable seat position is called up from the memory circuit to operate each motor and move the seat to the applicable position.

ac9uun00000370
