SLIDE MOTOR INSPECTION


id091300800900

1.  Disconnect the slid motor connector.

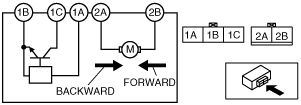

2.  Apply battery positive voltage to the slide motor terminals and inspect the slide motor operation

ac9uuw00001191

•  If not as specified, replace the slide adjuster.

Motor operation

Connection

B+

GND

Forward
2B
2A
Backward
2A
2B

3.  Connect the slide motor connector.

4.  Measure the slide motor terminal 1C waveform during motor operation using the oscilloscope.

Condition

Voltage (V)

High output
4.8 or more
Low output
1.0 or less

•  If not as specified, replace the slide adjuster.
