LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION


id091400803800

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

5.  Remove in the order indicated in the table.

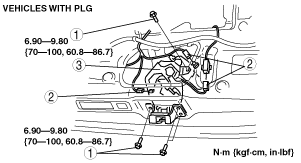

ac9uuw00002437

1
Bolt
2
Connector
3
Liftgate latch and lock actuator

ac9uuw00002436

1
Bolt
2
Connector
3
Cable
4
Liftgate latch and lock actuator

6.  Install in the reverse order of removal.
