COIL ANTENNA REMOVAL/INSTALLATION


id091400804900

Note
•  Do not remove the coil antenna unless you are replacing it.

1.  Disconnect the negative battery cable.

2.  Remove the lower column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Disconnect the coil antenna connector.

ac9uuw00001186

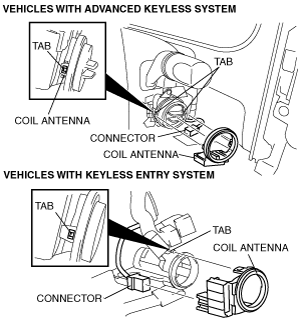

4.  Detach the steering lock tabs from the holes on the coil antenna.

5.  Install in the reverse order of removal.
