CARD KEY (TRANSMITTER) CONSTRUCTION/OPERATION [ADVANCED KEYLESS SYSTEM]


id0914b1103200

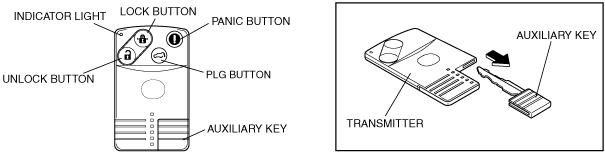

•  A card-type transmitter that is thin and convenient to carry has been adopted.
•  A maximum of six transmitters can be programmed for one vehicle.
•  A built-in operation indicator light illuminates according to LOCK/UNLOCK button operation and request signal from the vehicle.
•  In case the transmitter is inoperable due to battery depletion, the doors can be locked/unlocked and the engine can be started using the auxiliary key.
•  A transponder is built into the auxiliary key for vehicles with the immobilizer system.
ac9uun00000336
