SECURITY LIGHT CONSTRUCTION/OPERATION [KEYLESS ENTRY SYSTEM]


id0914b3105700


Construction

•  Allows visual confirmation of immobilizer system operation.
•  If any malfunction is detected in the immobilizer system, the malfunction location can be verified by the security light flashing pattern.
Caution
•  Always use the Mazda Modular Diagnostic System (M-MDS) to verify DTCs even if the security light indicates a DTC. If the security light itself has a malfunction, a DTC may not be indicated properly.

Operation

•  When the immobilizer system is operating, the security light flashes repeatedly 0.1 s every 2 s.
am8rrn00000420
•  When the immobilizer system is released normally, the security light illuminates for approx. 3 s and then goes off when the ignition switch is turned to the ON position.
am8rrn00000421

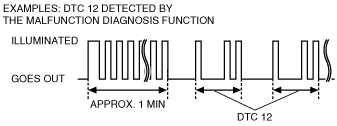

•  If the immobilizer system is not released normally (malfunction detected by the malfunction diagnosis function), the security light displays a DTC. If this occurs, the security light flashes or illuminates for 1 min and then displays the DTC when the ignition switch is turned to the ON position.
―  DTC 11—16: Flashes
―  DTC 21, 22, 23: Illuminated
am8rrn00000422
Note
•  The security light flashes to display the DTC 10 times.
•  If multiple DTCs that can be confirmed with the security light are detected, only the DTC with the lowest number of those detected will be displayed by the security light.
