FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

id091800800700

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

ac9uuw00000422

1	Bolt
2	Fastener
3	Front combination light
4	Connector

4.  Install in the reverse order of removal.(See Front combination light installation note.)

5.  Adjust the headlight aiming. (See HEADLIGHT AIMING.)

Front combination light installation note

Caution

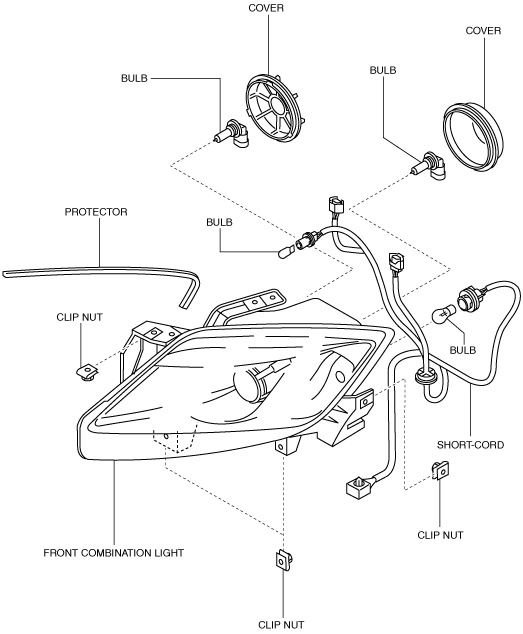

•  When replacing the front combination light, refer to the following disassembly figure and verify that parts are assembled correctly. If a part has not been assembled correctly, it could cause problems such as water leakage or fogging in the housing.

ac9wzw00003290

Note

•  Parts necessary for assembly vary depending on the vehicle's manufacturing period and specifications.
