LIGHT SWITCH INSPECTION


id091800802900

1.  Verify that the continuity between the light switch terminals is as indicated in the table.

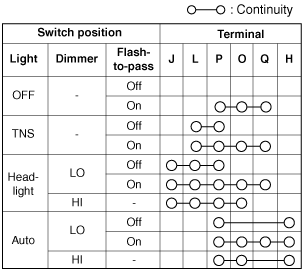

Light switch LH side (Vehicle with auto light)

acxaaw00001009
•  If not as indicated in the table, replace the light switch.
acxaaw00001010

Turn switch

acxaaw00001011
acxuuw00001735

Light switch LH side (Vehicle without auto light)

acxaaw00001012
•  If not as indicated in the table, replace the light switch.
acxaaw00001013

Turn switch

acxaaw00001011
acxuuw00001735

Light switch RH side (Vehicle with auto light)

am8rrw00001183
•  If not as indicated in the table, replace the light switch.
acxaaw00001166

Turn switch

am8rrw00001185
acxaaw00001167

Light switch RH side (Vehicle without auto light)

acxaaw00001014
•  If not as indicated in the table, replace the light switch.
acxaaw00001168

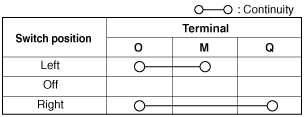

Turn switch

am8rrw00001185
acxaaw00001167
