AUTO LIGHT-OFF CONTROL MODULE REMOVAL/INSTALLATION

id091800803800

1.  Disconnect the negative battery cable.

2.  Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

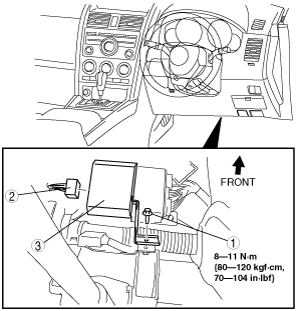

R.H.D.

ac9wzw00000221

L.H.D.

ac9uuw00002307

1	Bolt
2	Connector
3	Auto light-off control module

4.  Install in the reverse order of removal.
